Formax FD 8806CC Cross-Cut Industrial Shredders
Formax FD 8806CC Cross-Cut Industrial Shredders is backordered and will ship as soon as it is back in stock.
- High-capacity industrial shredders with fully-automated features and rugged strength for centralized, high-volume shredding.
- Available in cross-cut (FD 8806CC) and strip-cut (FD 8806SC) options.
- Shreds up to 90 sheets (CC) or 110 sheets (SC) per pass with a continuous-duty motor.

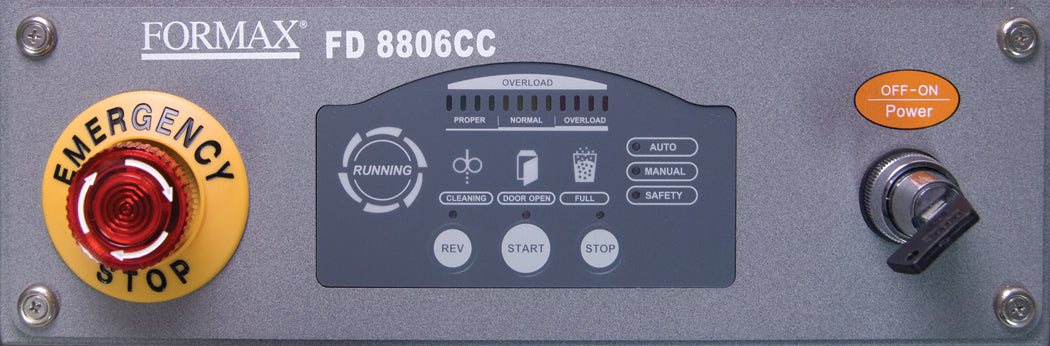

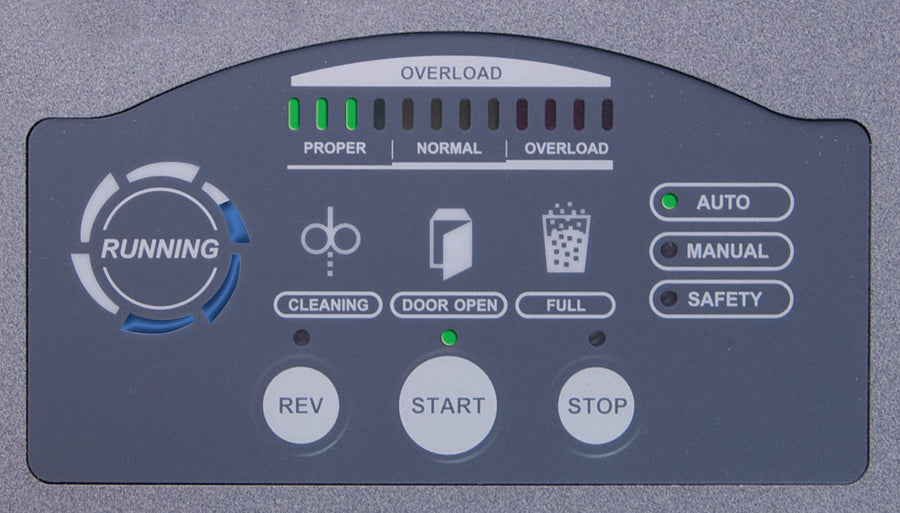

- Advanced LED control panel provides immediate feedback and minimizes jams.
- Features all-metal gearing and heat-treated solid steel cutting blades.
- Versatile shredding capabilities for entire files, computer forms, cardboard, CDs, and magnetic discs.
- User-friendly functions include Auto Start/Stop, Auto Reverse, and Auto Cleaning for enhanced operational efficiency.

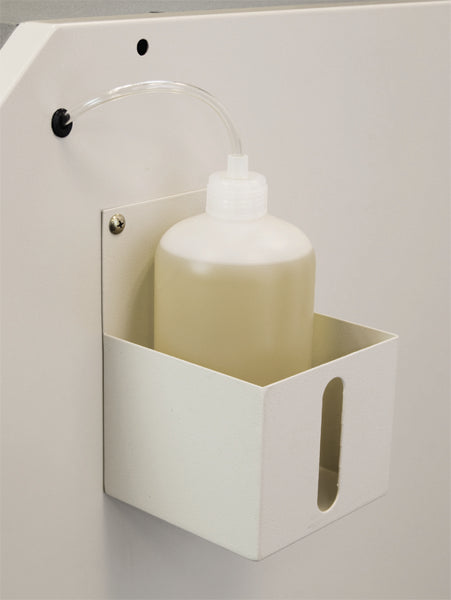

- EvenFlow™ Automatic Oiling System lubricates cutting blades for peak performance.

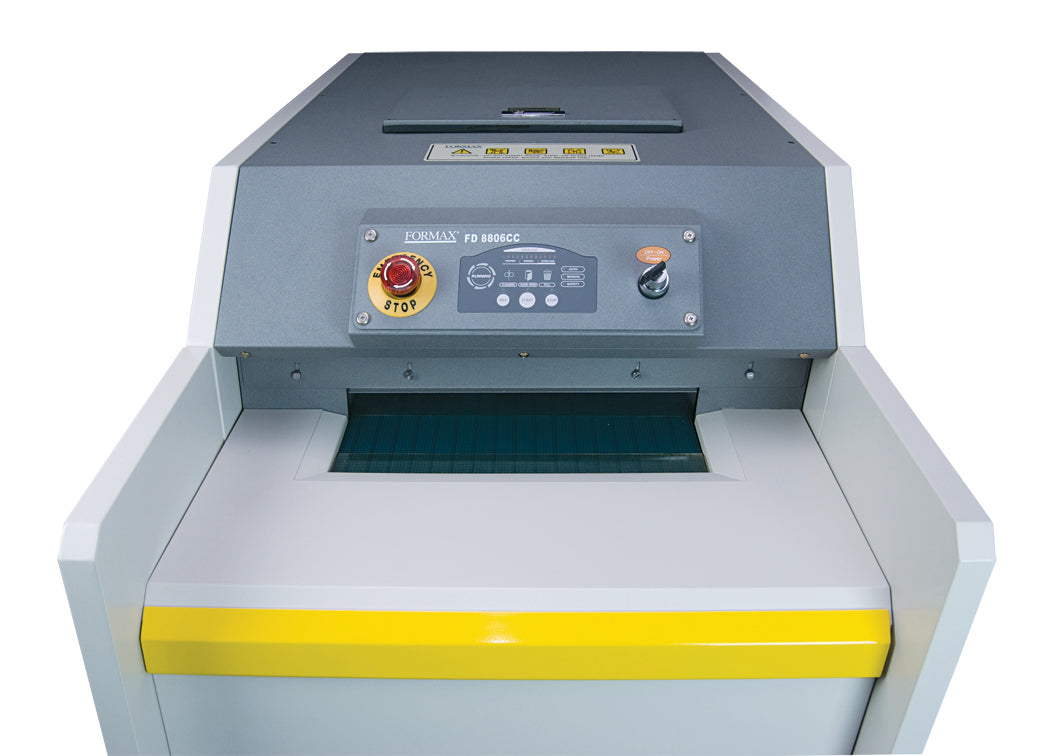

- Belt-Feed Industrial Shredding System handles a wide range of materials.

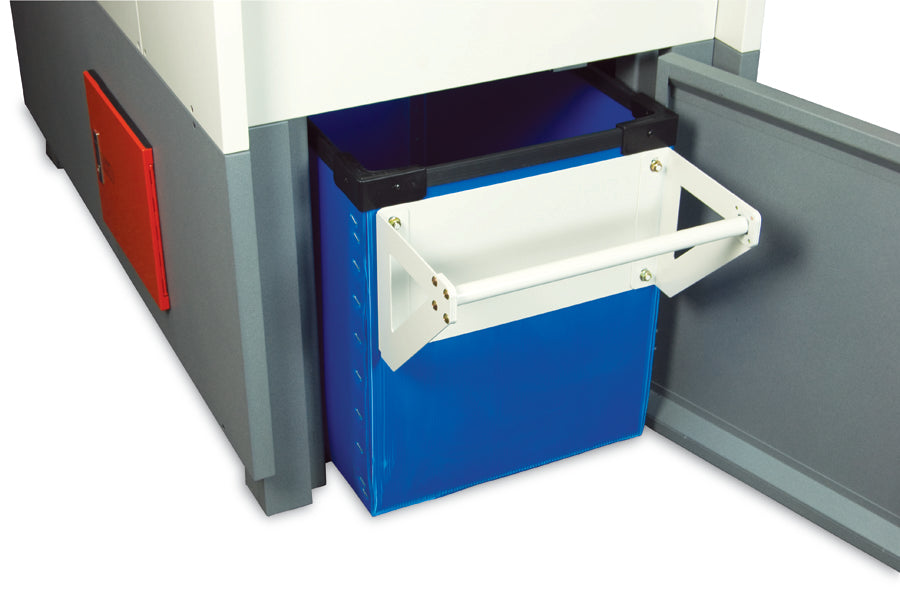

- Front waste bin access allows for space-saving placement against walls.
- Multiple safety features: large safety stop bar, door safety sensor, and key lock system.
- Self-Diagnosis System provides operational data with an optional diagnostic reader.
- Thermal Overload Protection and Safety Circuit Breaker ensure safe and reliable operation.
- Two operational modes: Auto Start/Stop with optical sensor and Manual mode for continuous operation.
- Waste Bin Full Sensor automatically stops the motor when the bin reaches capacity.
- 16" feed opening.
- 36-gallon waste bin capacity.
- 3-Phase 220V, 60Hz, 20A power supply.
Formax FD 8806CC Cross-Cut Industrial Shredders
Data Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Cutting Style | Cross-Cut |
| Shred Size | 1/4” x 1.57” 1/2” |
| Security Level | P-3 | Sheet Capacity | Up to 90 |
| Materials to Shred: | Paper, Computer Forms, Cardboard, Tapes, Files, Ribbons, CDs, Magnetic Disks |
| Speed | Up to 43 fpm |
| Feed Opening | 16" |
| Dimensions | 28.3” W x 52.3” L x 48.5” H |
| Bin Capacity | 36 gallons |
| Weight | 1008 lbs |
| Power Supply | 3-Phase 220V, 60Hz, NEMA L15-20P plug included, A L15-20R receptacle required |

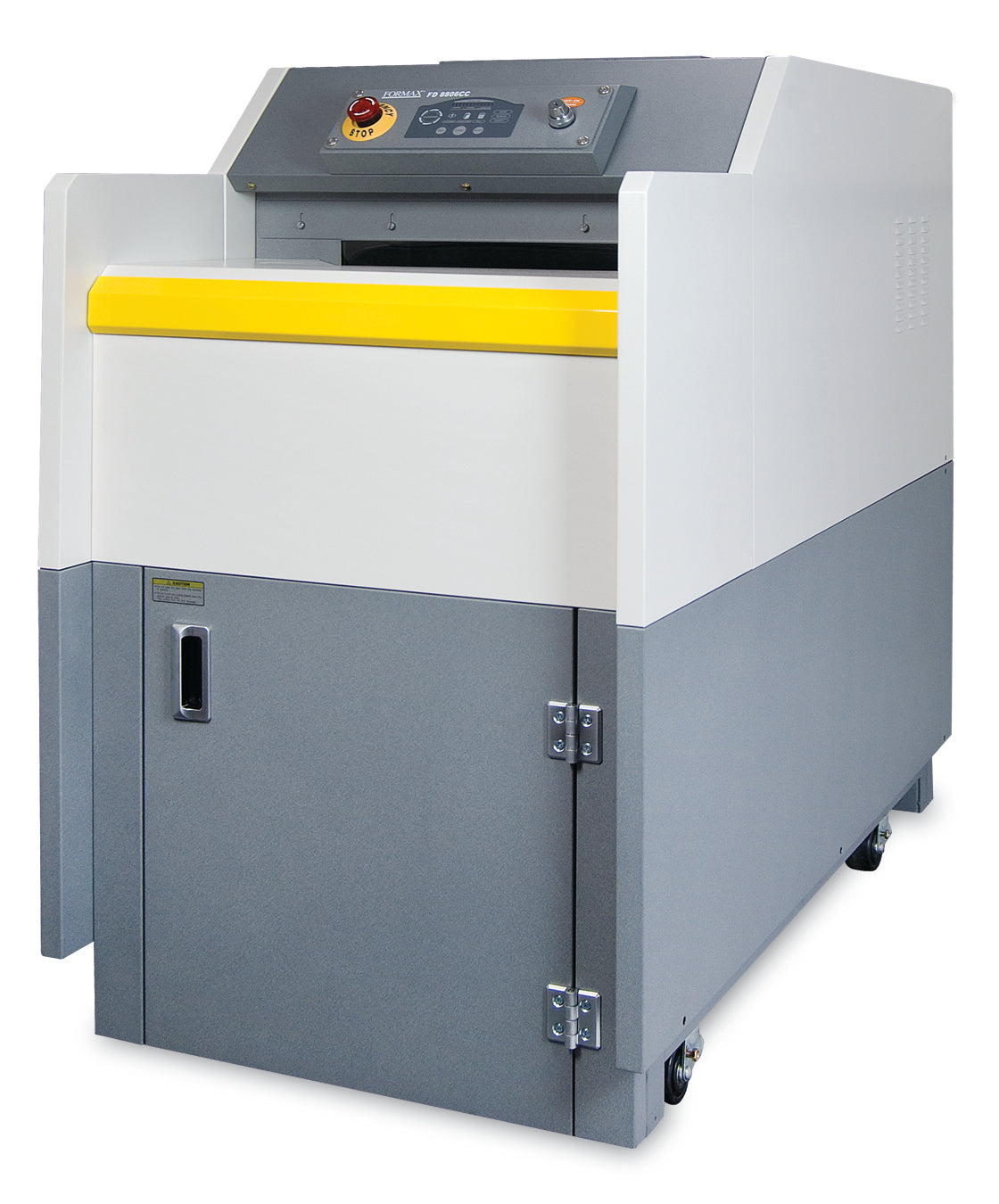

The Formax FD 8806CC is a high-performance industrial shredder built for centralized, high-volume document destruction. Capable of shredding up to 90 sheets per pass, it also handles CDs, magnetic disks, and entire file folders with ease. Its LED control panel and EvenFlow™ Automatic Oiling System support continuous operation with minimal maintenance.
This shredder features heat-treated solid steel blades and a conveyor-fed system designed for bulk shredding tasks. The Auto Start/Stop and Auto Reverse functions help prevent jams and streamline workflow. With a safety key lock and emergency stop bar, the FD 8806CC offers industrial-grade security and dependable performance for large-scale operations.
