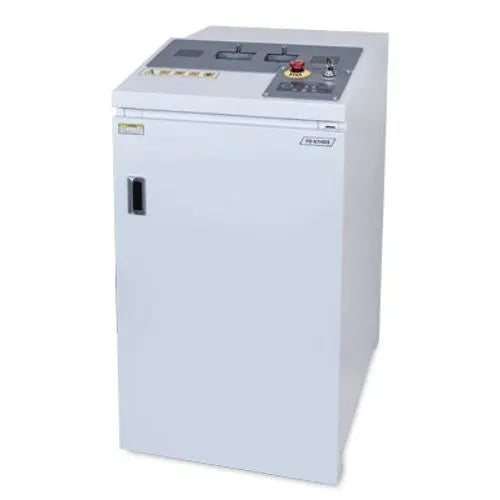

Formax FD 87HDS-R Hard Drive Shredder
Formax FD 87HDS-R Hard Drive Shredder is backordered and will ship as soon as it is back in stock.
- Hard drive shredder for 3.5" HDD and 2.5" HDD/SSD, ensuring top-level security and complete data destruction
- Recording system with internal and external cameras to monitor and document the destruction process
- Includes a 64GB SD card for video storage and barcode image storage for accountability
- Separate shredding chambers with sliding metal safety shields

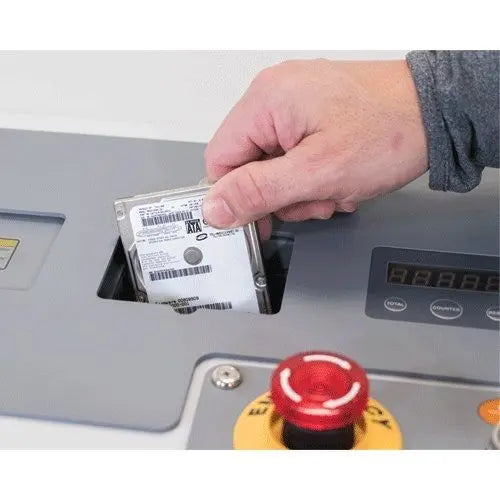

- Continuous operation design, allowing users to load drives one at a time
- Hardened steel cutting blades for strength and durability

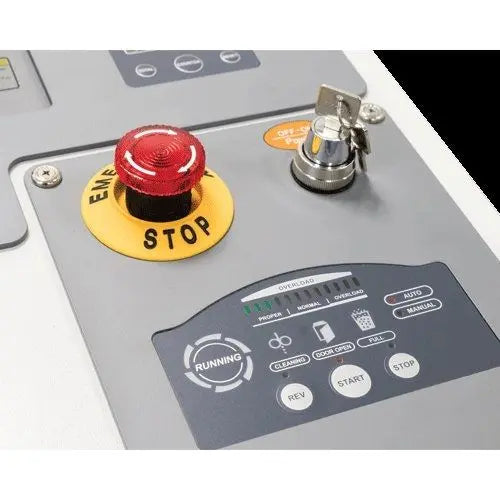

- LED control panel displays operational status and offers jam protection with Auto Reverse and Auto Stop features
- Resettable LED counters for each shredding chamber to keep an accurate tally of shredded drives
- All-metal cabinet with casters for mobility
- Engineered for low operational noise
- H-4 security level (DIN 66399 Standard)
- Shreds 3-4 drives per minute

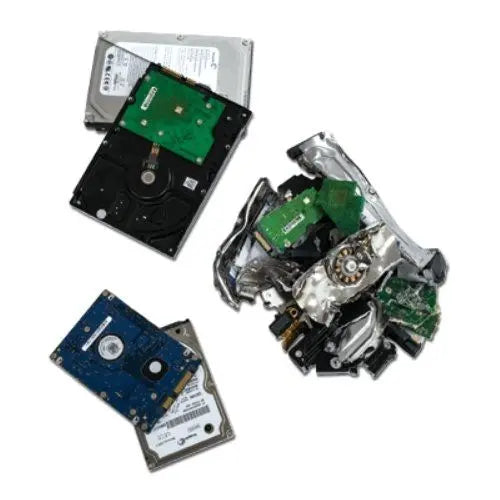

- Grinds 3.5" HDDs into pieces 1.6" wide and smaller
- Grinds 2.5" HDD & SSDs into pieces .19" wide and smaller
- Automatic motor stop when doors are open or waste bin is full for enhanced safety
- Powerful chain-driven AC-geared motor
- Convenient molded plastic waste bin for proper disposal or recycling of shredded particles
- Includes thermal overload protection and a safety key lock for added security
- Requires 220V 20A 3-Phase power
Data Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual 1: View PDF File
Maintenance / Parts Manual 2: View PDF File
Product Specifications
Feed Opening for 3.5” HDD | 4.72” (120mm) |
Feed Opening for 2.5” HDD & SSD | 3.54” (90mm) |
Shred Particle Size for 3.5” HDD | 1.6” (40mm) x random |
Shred Particle Size for 2.5” HDD & SSD | .19” (5mm) x random |
Infeed Capacity Continuous, 1 drive at a time | Speed * 3-4 drives per minute |
Materials to Shred: | HDD & SSD Drives |
Dimensions | 24” W x 34” D x 51” H (600 x 850 x 1290mm) |
Security Level | H-4 (DIN 66399 Standard) |
Weight | 1,146 lbs (520kg) |
Power | 220V 20A 3-Phase NEMA Plug / Receptacle: L1520P / L1520R |
The Formax FD 87HDS-R Hard Drive Shredder delivers unmatched physical data destruction, built to eliminate both 3.5" HDDs and 2.5" HDDs/SSDs with H-4 level security. It reduces storage media to unrecoverable fragments using hardened steel blades and dual cutting chambers. Designed for demanding environments, this shredder supports continuous use and complete compliance with data security protocols.
What sets the FD 87HDS-R apart is its built-in recording system, with internal and external cameras that document every shred cycle. This feature provides proof of destruction for audits and regulatory compliance. Backed by a chain-driven motor, safety shields, and emergency stop functions, the FD 87HDS-R combines accountability, performance, and user safety in one powerful solution.
Video of Formax FD 87HDS-R Hard Drive Shredder
