Formax FD 87HDS Hard Drive Shredder
Formax FD 87HDS Hard Drive Shredder is backordered and will ship as soon as it is back in stock.
- Physically destroys discarded hard drives for ultimate data security at H-4 security level

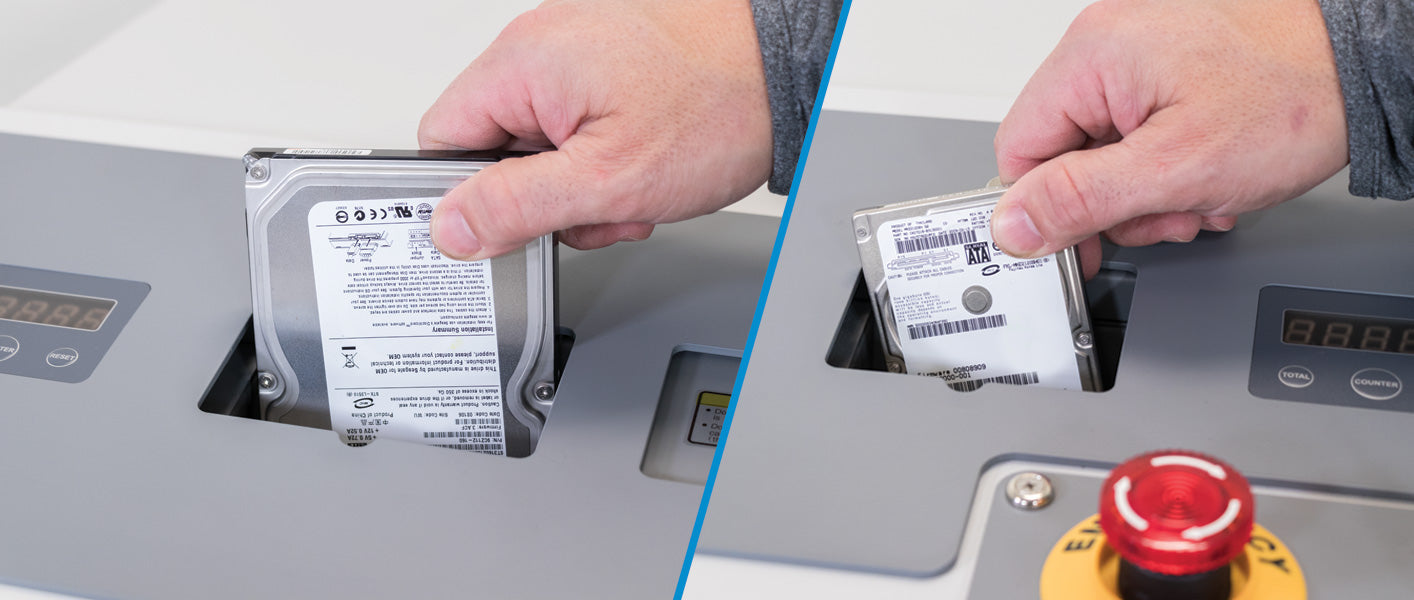

- Dual shredding chambers for 3.5" HDDs and 2.5" HDDs/SSDs with sliding metal safety shields
- Continuous operation design, shredding 3-4 drives per minute
- Shreds 3.5" HDDs into 1.6" wide pieces and 2.5" HDDs/SSDs into 0.19" wide pieces

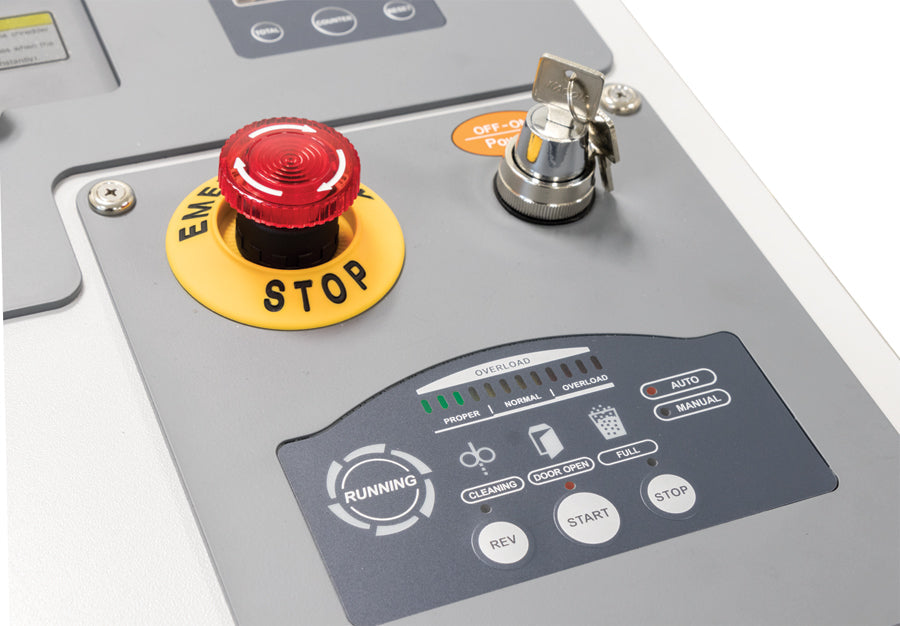

- LED control panel with jam protection, auto reverse, and auto stop features
- Individual resettable LED counters for each shredding chamber
- Heat-treated, hardened steel cutting blades ensure durability and effectiveness
- Heavy-duty chain-driven AC-geared motor for reliable performance

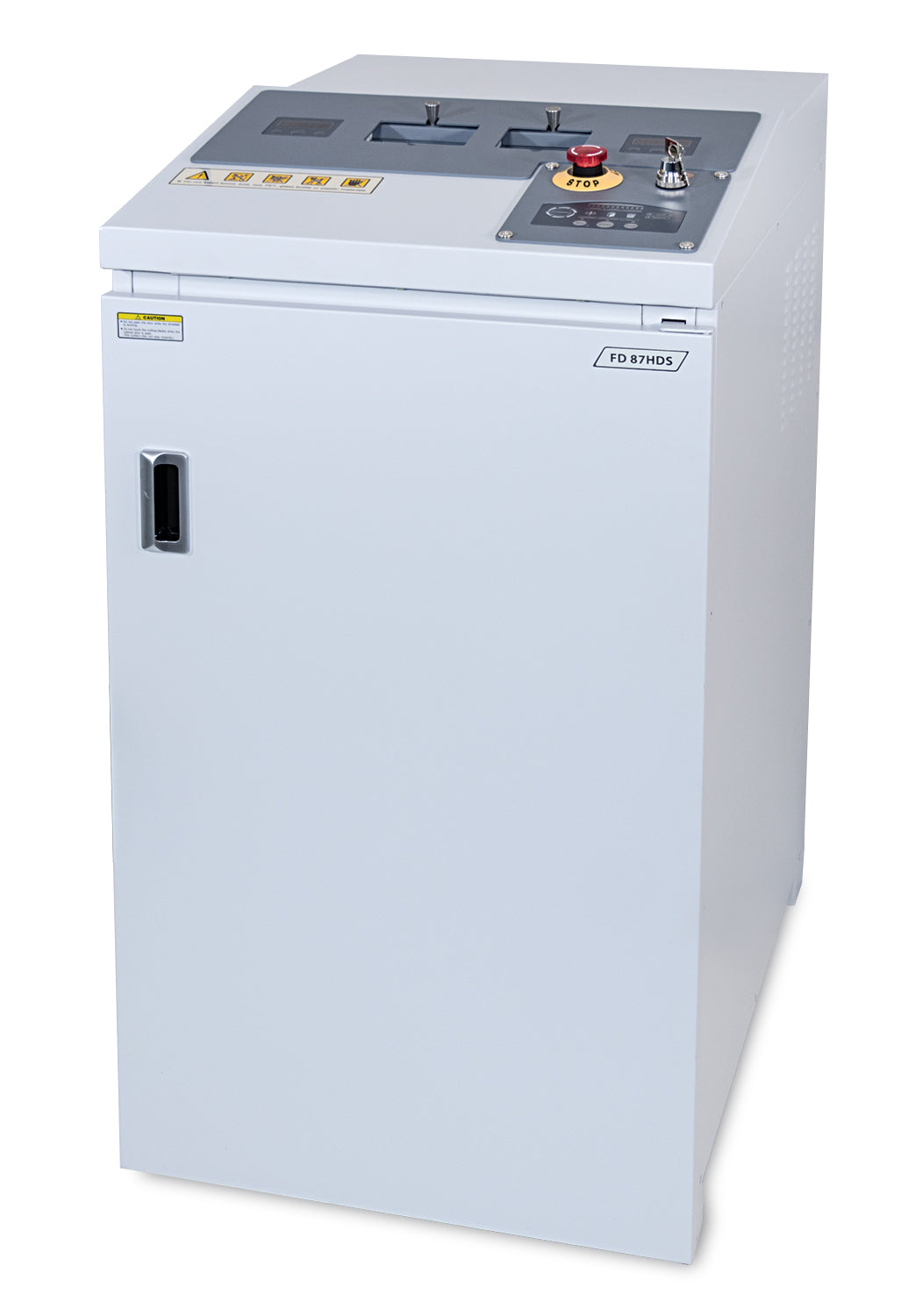

- All-metal cabinet with casters for mobility and low operational noise

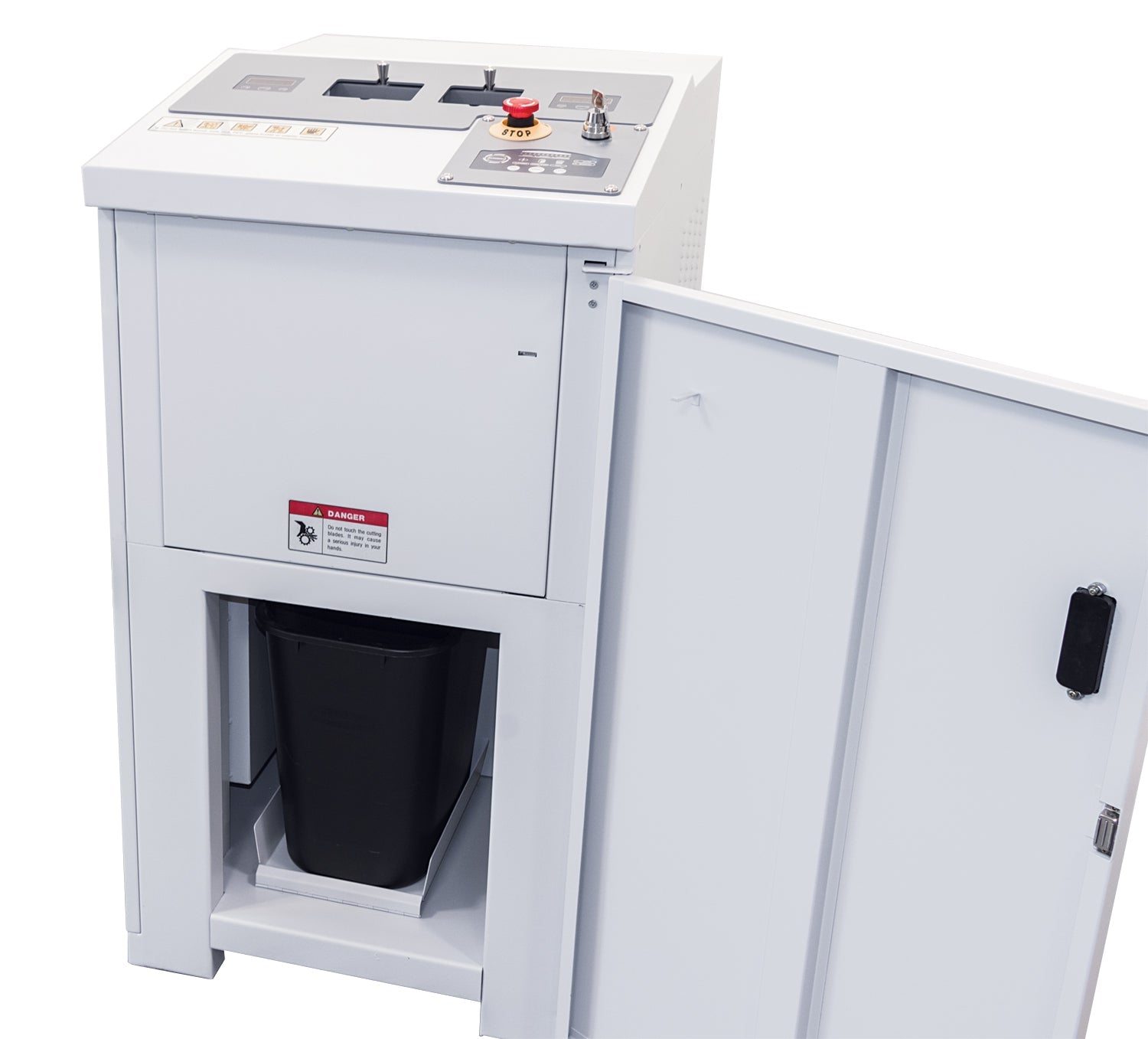

- Front-access waste bin for convenient disposal, with automatic motor stop when full
- Large emergency stop button for added safety
- Thermal overload protection to prevent motor damage
- Safety key lock to prevent unauthorized use
- 220V 20A 3-Phase power for commercial-grade, continuous operation
Formax FD 87HDS Hard Drive Shredder
Data Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual 1: View PDF File
Maintenance / Parts Manual 2: View PDF File
Product Specifications
| Feed Opening for 3.5” HDD | 4.72” (120mm) |
| Feed Opening for 2.5” HDD & SSD | 3.54” (90mm) |
| Shred Particle Size for 3.5” HDD | 1.6” (40mm) x random |
| Shred Particle Size for 2.5” HDD & SSD | .19” (5mm) x random |
| Infeed Capacity Continuous, 1 drive at a time | |
| Speed * 3-4 drives per minute | |
| Materials to Shred: | HDD & SSD Drives |
| Dimensions | 24” W x 34” D x 49.5” H (600 x 850 x 1258mm) |
| Security Level | H-4 (DIN 66399 Standard) |
| Weight | 1,102 lbs (500kg) |
| Power | 220V 20A 3-Phase |
| NEMA Plug / Receptacle: | L1520P / L1520 |

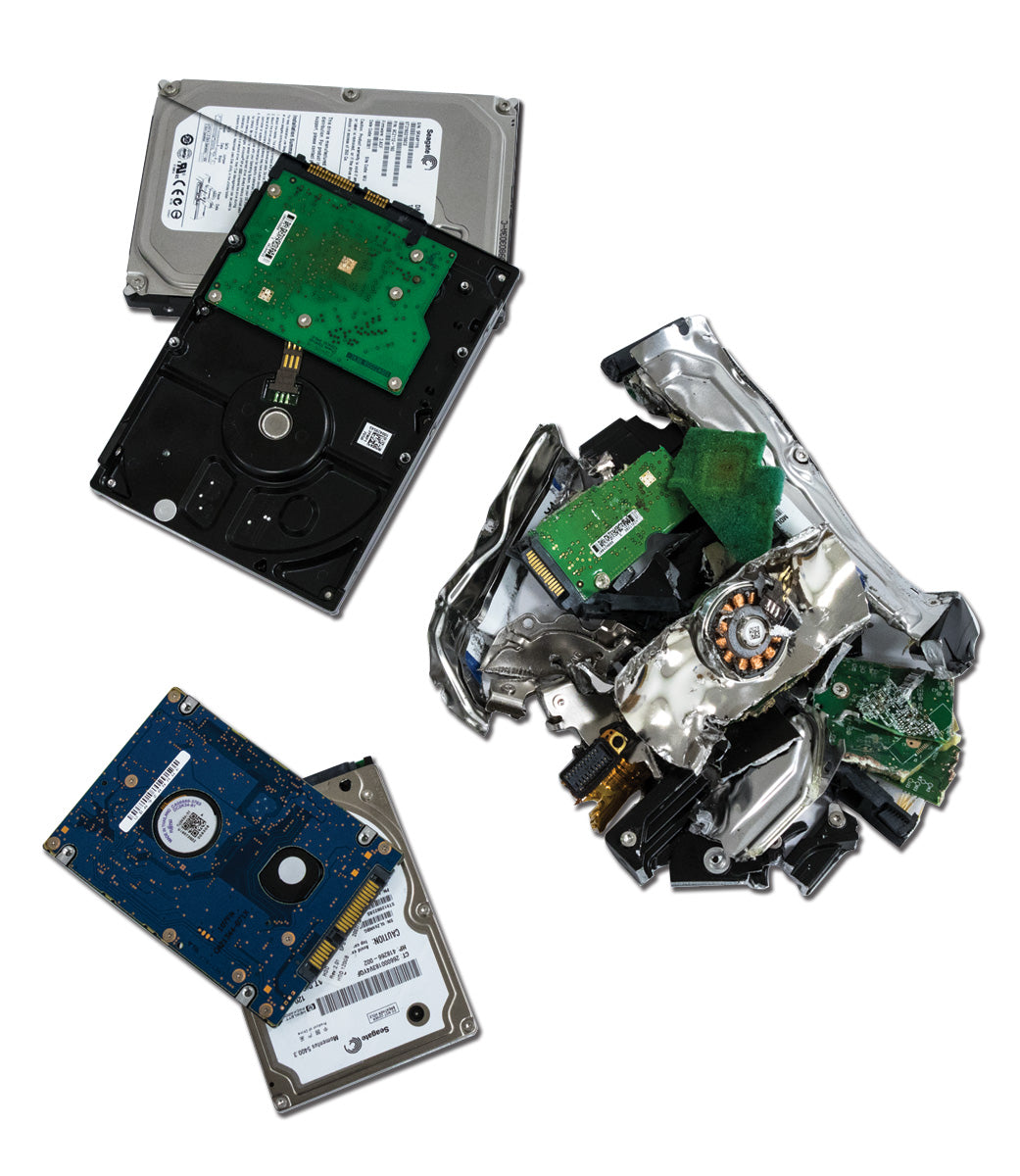

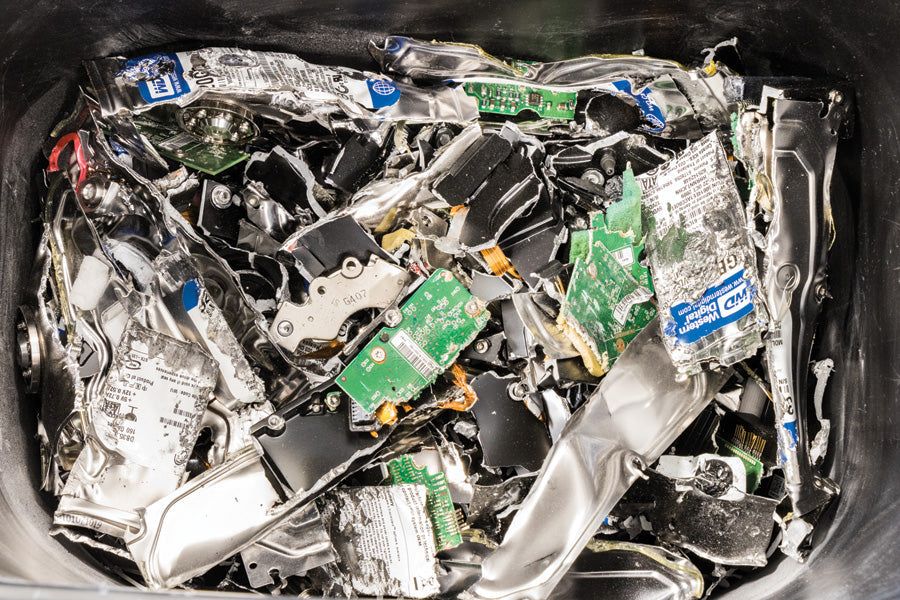

The Formax FD 87HDS Hard Drive Shredder delivers industrial-grade protection for destroying obsolete hard drives and solid-state drives. With dedicated chambers for 3.5" and 2.5" drives, it grinds data storage devices into tiny, unreadable particles. Shred sizes include 1.6" x random for HDDs and 0.19" x random for SSDs, meeting H-4 security standards under DIN 66399.
Designed for high-volume operation, the FD 87HDS processes one drive at a time with continuous throughput and minimal noise. Its user-friendly control panel features LED counters and built-in safety protections. Housed in a rugged metal cabinet with smooth-rolling casters, this shredder combines mobility, efficiency, and certified data destruction in one powerful machine.
Video of Formax FD 87HDS Hard Drive Shredder
